1%FS Brass Pressure Sensor For Water Parkard Electrical Connection

Place of Origin : Anhui, China

Brand Name : WNK

Model Number : WNK83MA

Packaging Details : standard export carton box

Supply Ability : 10000 Piece/Pieces per Month Brass Pressure Sensor

MOQ : 10 Pieces

Price : $6.50/Pieces >=10 Pieces

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Delivery Time : 5-8 work days

Warranty : 1 YEAR

Customized support : OEM, ODM

Measured media : liquid, gas and steam

Output signals : 0.5-4.5V

Accuracy : 1%F.S

Pressure range : 10bar, 20bar

Protection class : IP65

Housing material : Brass

Power Supply : 5V

Product name : 0.5-4.5V Low Cost Brass Water Pressure Sensor For Water Treatment

Mechanical connection : G1/4

Pressure measurment : Gauge Pressure, Sealing pressure

Port : Shanghai, Ningbo, Shenzhen etc

Contact Now

0.5-4.5V Low Cost Brass Pressure Sensor For Water Treatment

Applicable media Liquid, gas and steam
Pressure range 0-2MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply

4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Parkard
Mechanical connection G1/4
Housing material Brass

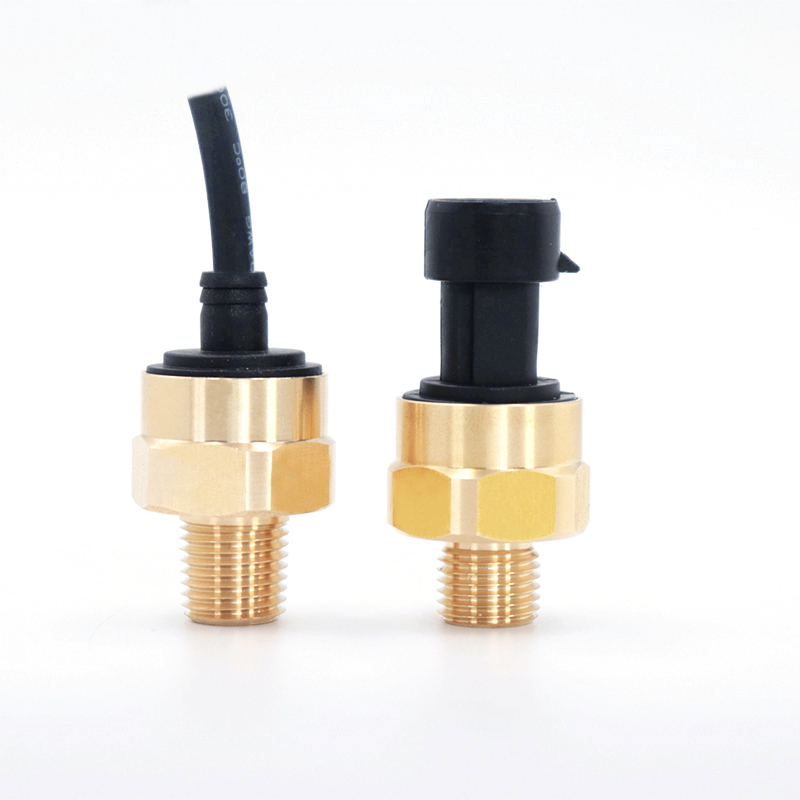

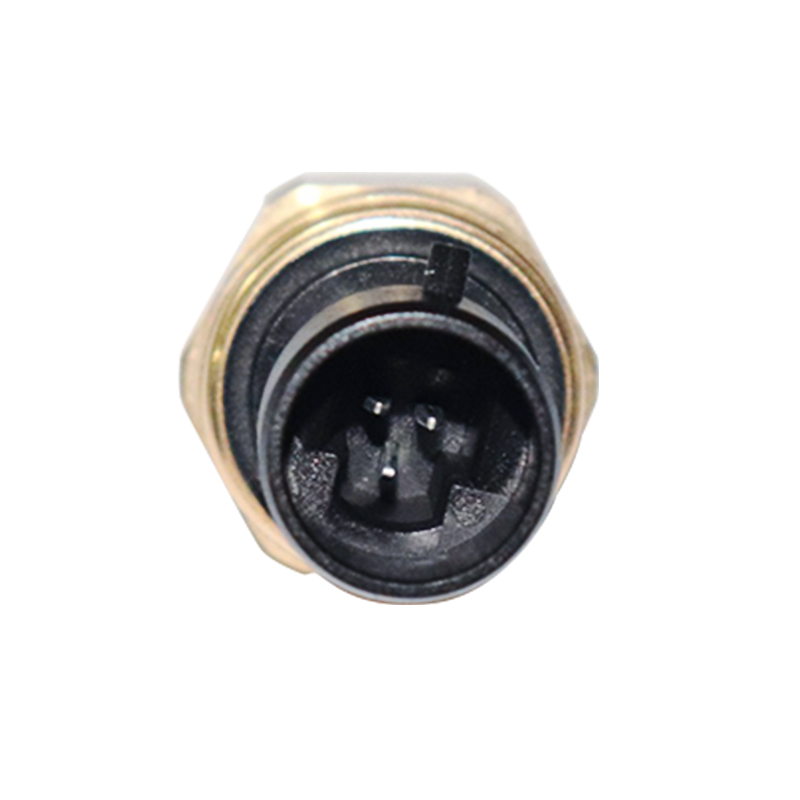

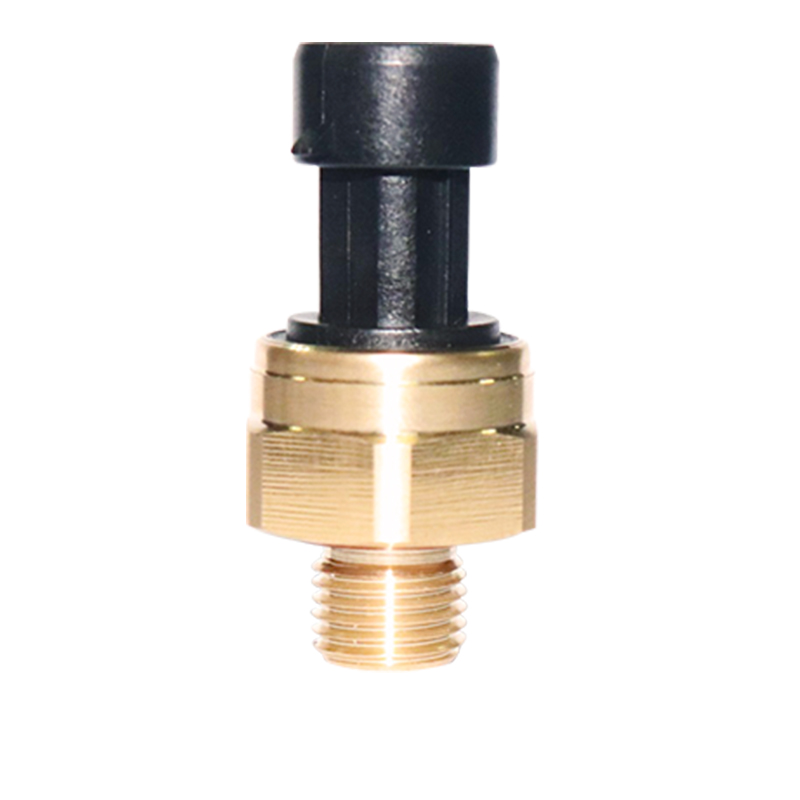

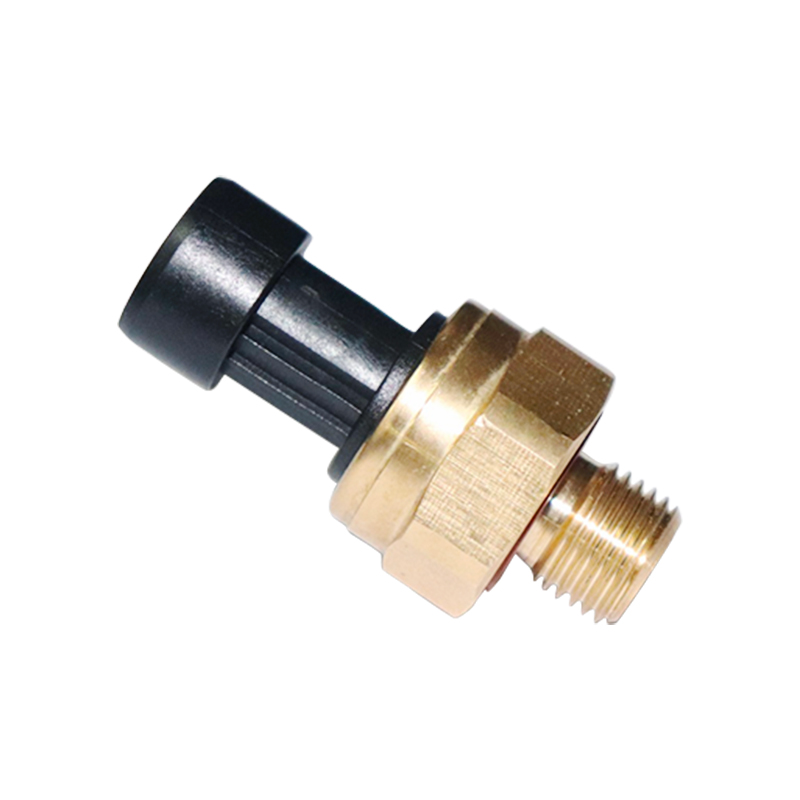

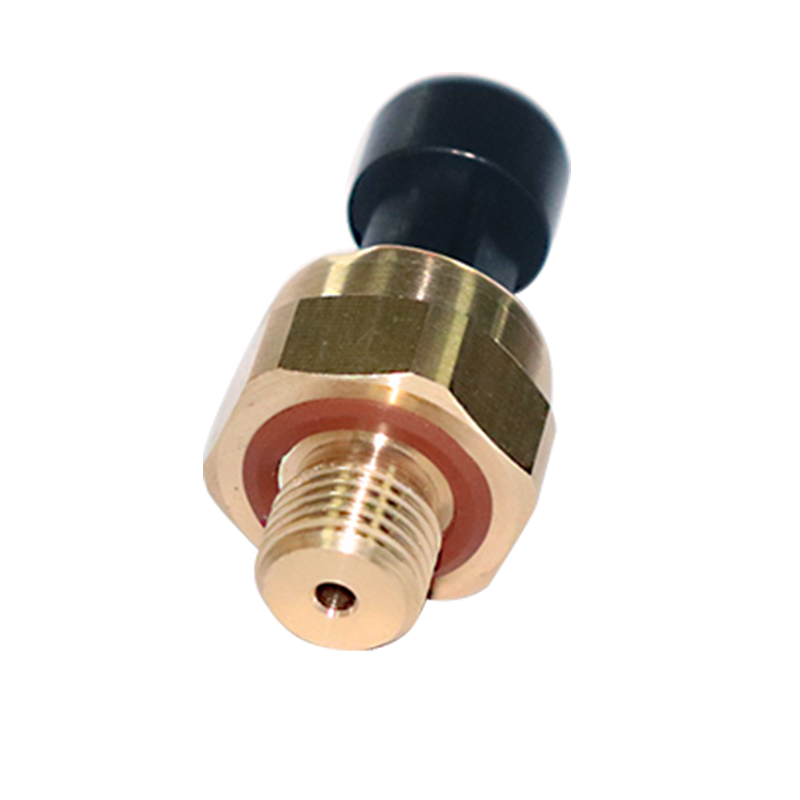

1%FS Brass Pressure Sensor For Water Parkard Electrical Connection

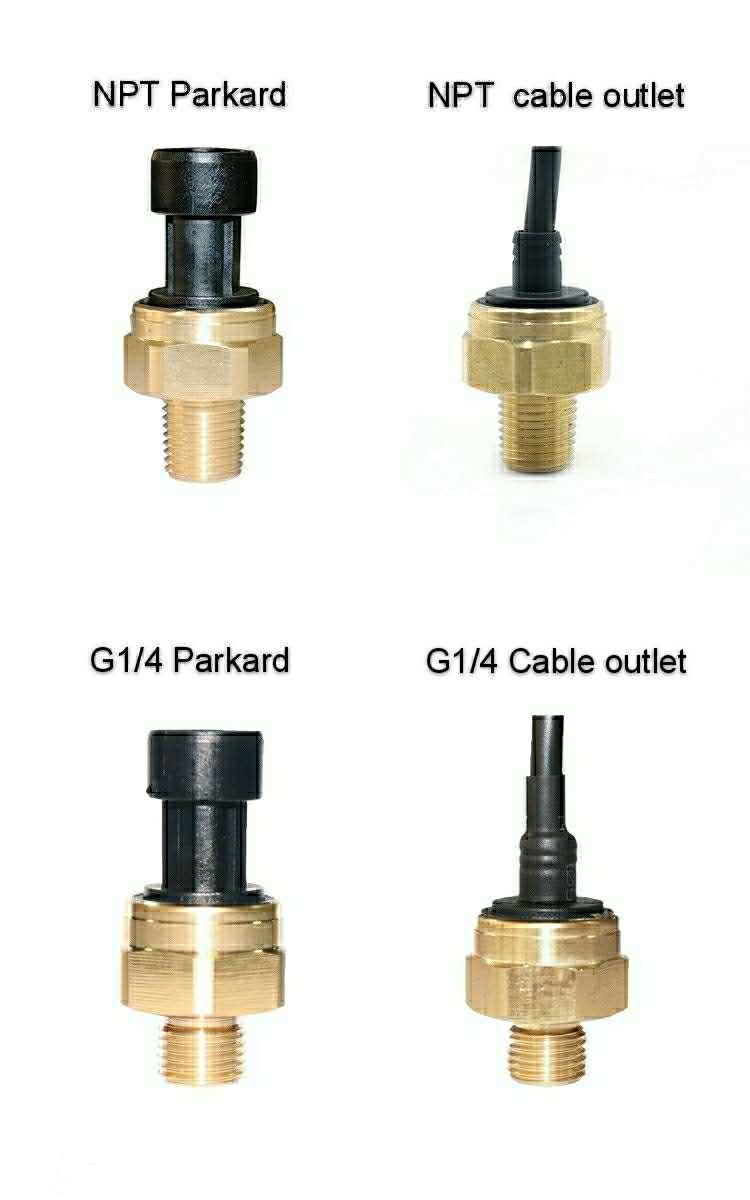

Product Show

1%FS Brass Pressure Sensor For Water Parkard Electrical Connection

1%FS Brass Pressure Sensor For Water Parkard Electrical Connection1%FS Brass Pressure Sensor For Water Parkard Electrical Connection

1%FS Brass Pressure Sensor For Water Parkard Electrical Connection1%FS Brass Pressure Sensor For Water Parkard Electrical Connection1%FS Brass Pressure Sensor For Water Parkard Electrical Connection1%FS Brass Pressure Sensor For Water Parkard Electrical Connection1%FS Brass Pressure Sensor For Water Parkard Electrical Connection1%FS Brass Pressure Sensor For Water Parkard Electrical Connection

Company Information

Exhibition

Certification

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
