IP65 Low Cost Ceramic Water Pressure Sensor 4-20mA Pressure Transmitter Transducer

Brand Name : WNK

Model Number : WNK811

Certification : CE/ROHS

Place of Origin : Anhui, China

Price : $8.90 - $29.90/Pieces

Supply Ability : 30000 Piece/Pieces per Month 3.3V pressure transducer

Packaging Details : paper carton or as per clients' requirement

Warranty : 1 YEAR

Customized support : OEM, ODM

Pressure range : 0-60bar

Accuracy : 0.5%FS, 1%FS

Output : I2C, SPI, 0.2-2.9V, 4~20mA, 0.5-4.5V and etc

Operation temperature : -40~130C

Electrical connector : DIN, Packard, Direct Cable, M12X1, Deustch

Ingress protection : IP67

Respond time : ≥1ms

Overload : 2x FS

Proof pressure : 3x FS

Pressure Port : G1/4, G1/2 ,1/8NPT, 1/4NPT, other

Port : Shanghai, Tianjin,

Contact Now

IP65 Ceramic Water Pressure Sensor 4-20mA Pressure Transmitter Transducer

Product Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Application

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0-60bar
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.2% 0.5% 1.0% FS.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

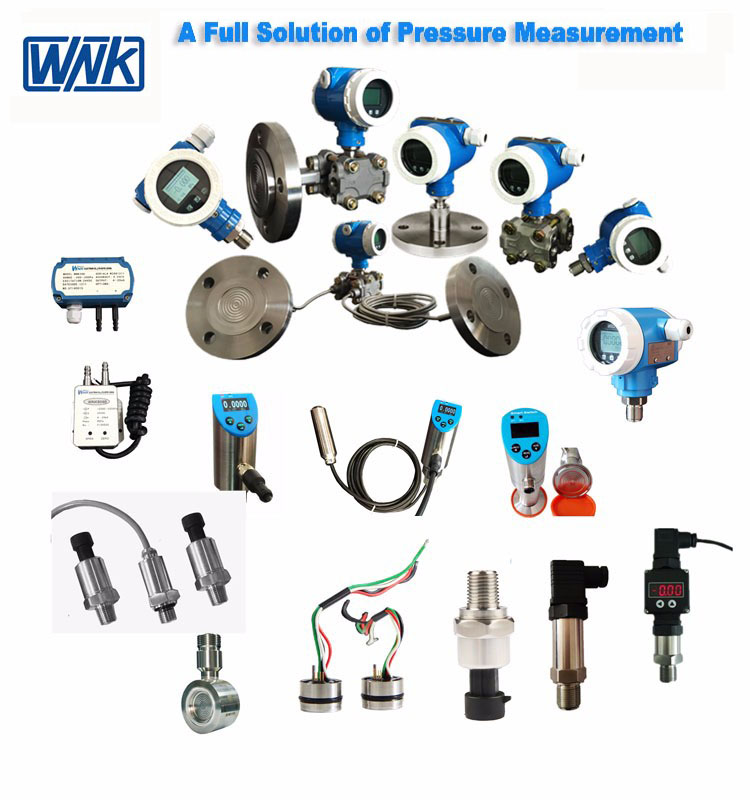

Product Show

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
